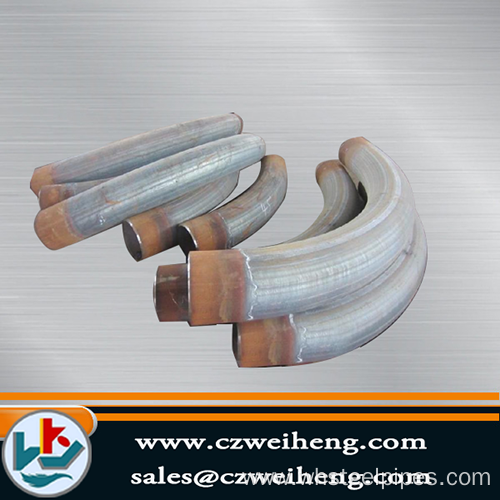

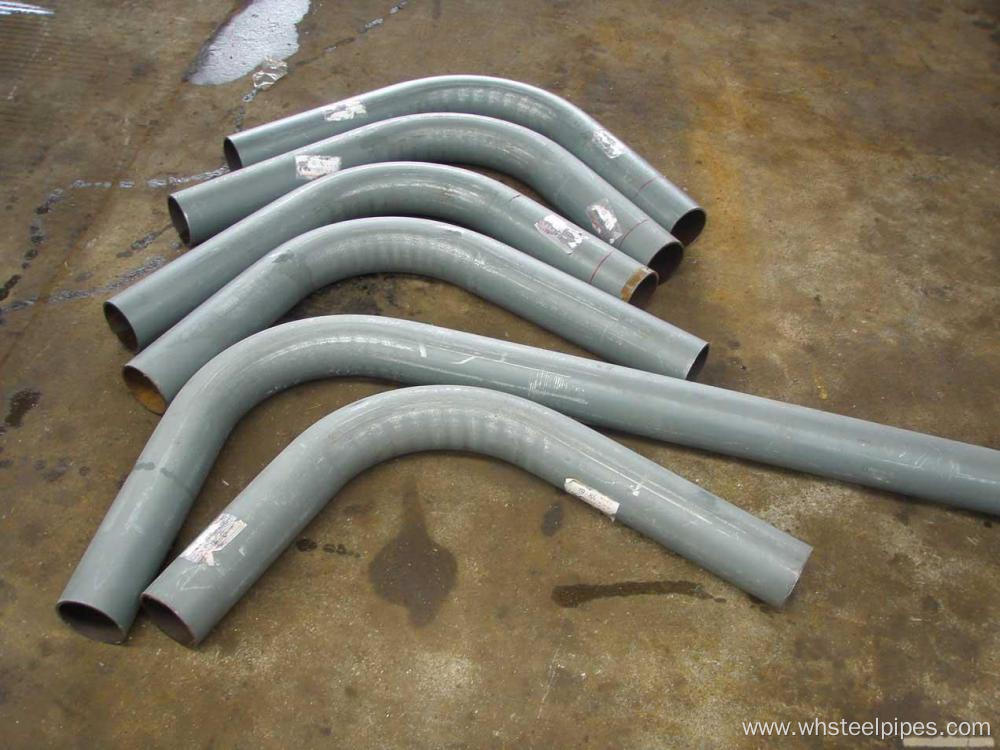

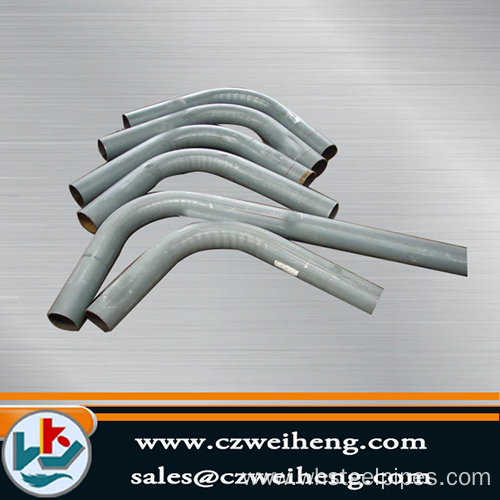

Cs 90 Degree Seamless Pipe Bends Bend Pipe With Different Size,galvanized

Basic Info

Model No.: 1/2inch-48inch

Brand: WH

Packaging: wooden case

Productivity: 10000TONS

Transportation: Ocean,Air

Place of Origin: CANGZHOU

Supply Ability: 10000TONS

Certificate: ISO9001

Payment Type: L/C,T/T,Western Union

Incoterm: FOB

ASTM A53 Carbon Steel Bend Pipe
1.Size:1/2''-72''
2.WT:SCH10-SCH160
3.Standard:ASTM A234 WPB b16.9/B16.25/16.49

Name:ASTM A53 Carbon Steel Bend Pipe

Material	carbon Steel Pipe
Technique	forged
Connection	welding
Head code	bevel the end
Size	1/2 to 48-inch/DN15-DN1200
Angles	30, 45, 60, 90, and 180°
WT	Sch5-Sch160 ,such as SCH20, SCH40, STD, SCH80, SC100, SCH120, and SCH160
Standard	ANSI,ASME,API5L,DIN,JIS,BS,GB we can also produce according to drawing
Specification standards	ANSI B16.9, ANSI B16.28, JIS B2311, DIN 2605, 2615, 2616, and 2617
Material	carbon steel, alloy steel, and stainless steel
Types	45 and 90° LR/SR elbows, 180° returns, straight, reducing tees, caps, concentric and eccentric reducers
Radius Of Curvature	1D-10D ANSI,ASME,API5L,DIN,JIS,BS,GB
Surface treatment	black paint, varnish, rust-proof oil, and hot-dipped galvanized
Range Of Application	Chemical industry, petroleum industry, construction industry, domestic installation and other
Certificates	ISO-9001/2000
Special design available as requirement
